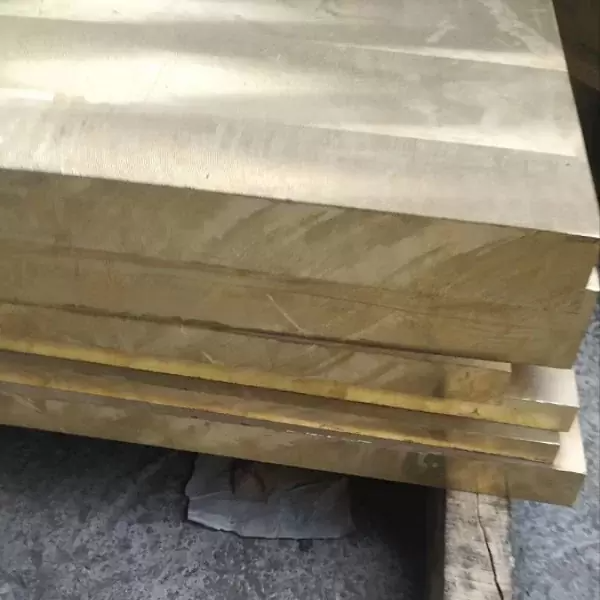

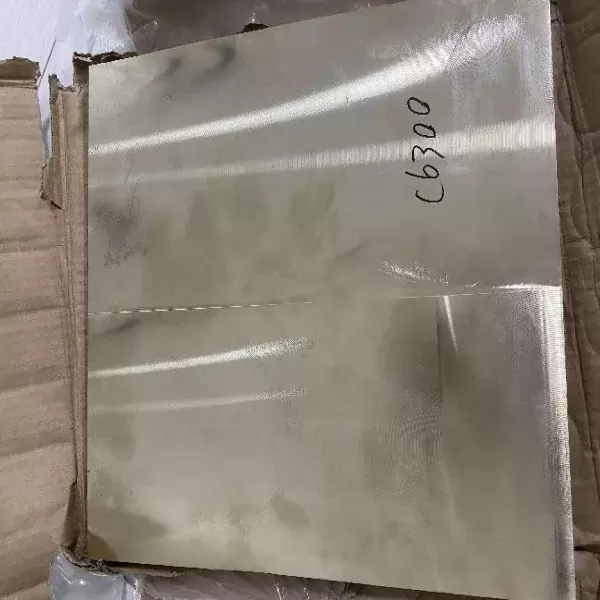

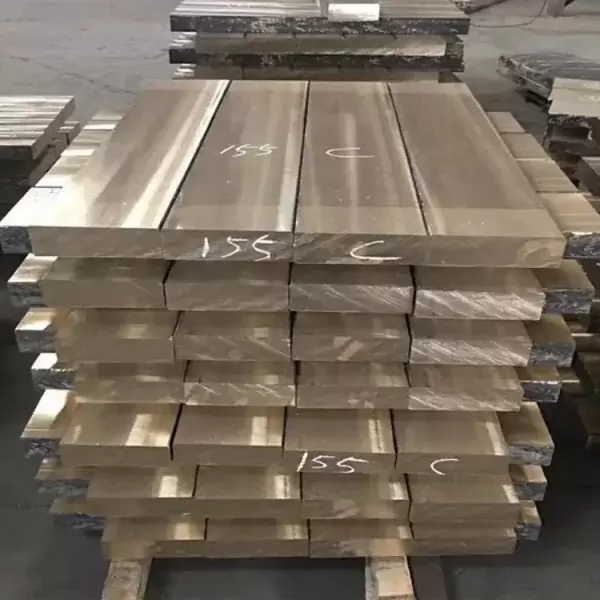

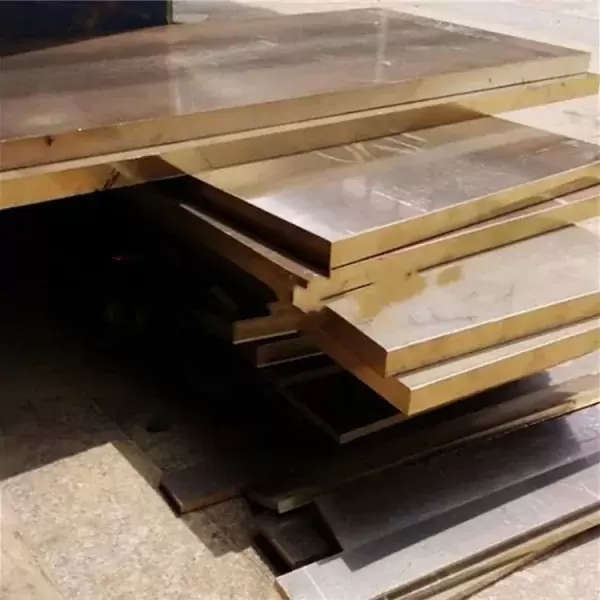

Product Name: Beryllium Copper Plate

Material: Beryllium Copper

Alloy Grades: C17200, C17500, C18000 (depending on application and required properties)

Dimensions Available: Custom sizes available

Thickness: 1mm to 150mm (custom thickness upon request)

Width: Up to 1500mm

Length: Custom lengths up to 4000mm or as required

Applications:

• Electrical Components: Used in high-performance electrical connectors, switchgear, relays, and electrical contacts due to its excellent conductivity and strength.

• Precision Engineering: Ideal for the manufacture of precision components such as gears, springs, and bushings that require high strength and wear resistance.

• Aerospace and Defense: Utilized in high-stress components in the aerospace and defense sectors, including electrical connectors and mechanical parts.

• Automotive: High-performance automotive components, including electrical connectors, grounding contacts, and other critical parts.

• Mold & Die Making: Used for manufacturing mold bases, stamping dies, and other high-precision molds.

• Mining and Oil & Gas: Plates are used in high-wear environments such as drill bits, pressure seals, and electrical connectors.

Specifications:

Material Grade Options: C17200 (highest strength), C17500 (higher conductivity), C18000 (specific use in non-sparking environments)

Mechanical Properties:

• Tensile Strength: Up to 1,400 MPa (varies with grade and temper)

• Yield Strength: 1,200 MPa (for C17200 in heat-treated condition)

• Hardness: Rockwell C40 to C50 (depending on temper)

• Electrical Conductivity: 20-30% IACS (varies by alloy grade)

• Density: 8.28 g/cm³

• Thermal Conductivity: 120-150 W/m·K (varies with alloy grade)

Packaging & Delivery:

Packaging: Standard industrial packaging with protective film to prevent damage during transit; customized packaging is available based on client requirements.

MOQ: Negotiable based on order volume and client specifications.

Delivery Time: Typically 15-30 days after order confirmation (depending on order size and customization requirements).

Certifications: ISO 9001, RoHS compliant, and other relevant quality certifications.
